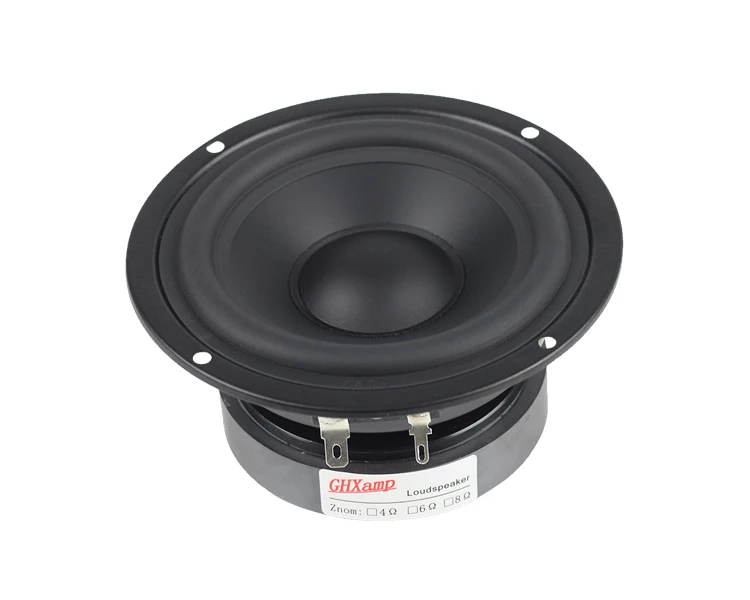

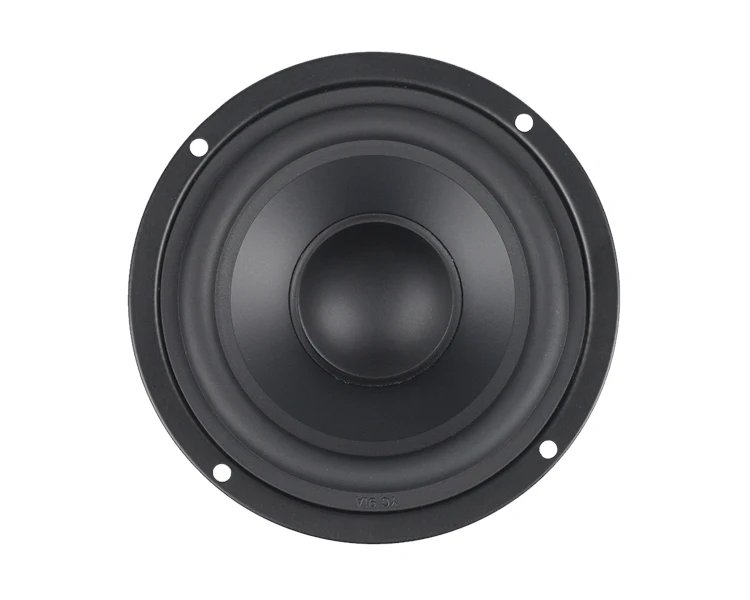

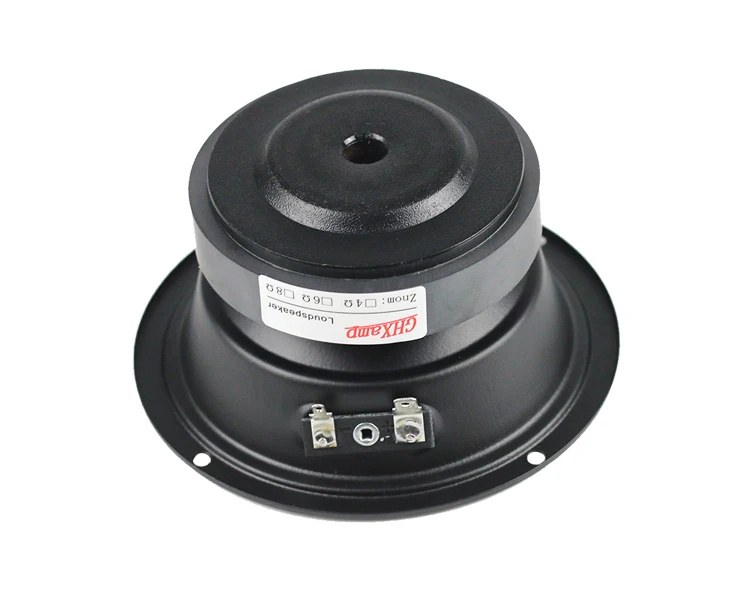

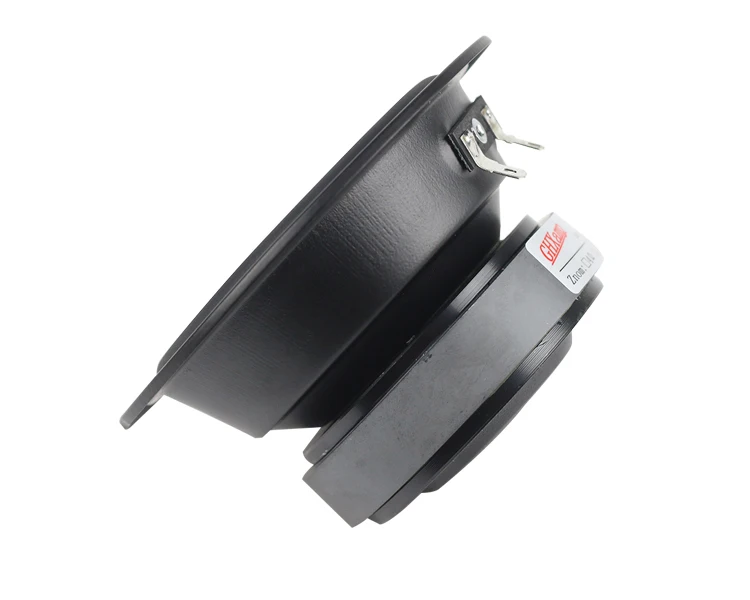

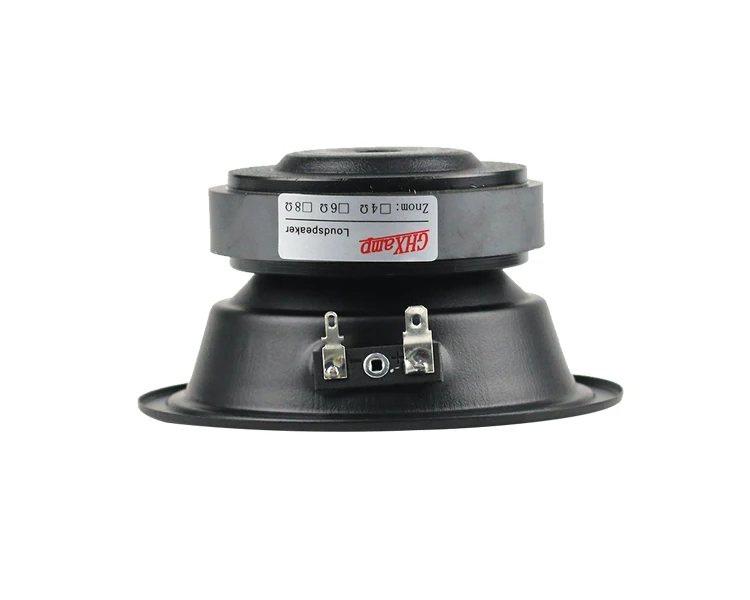

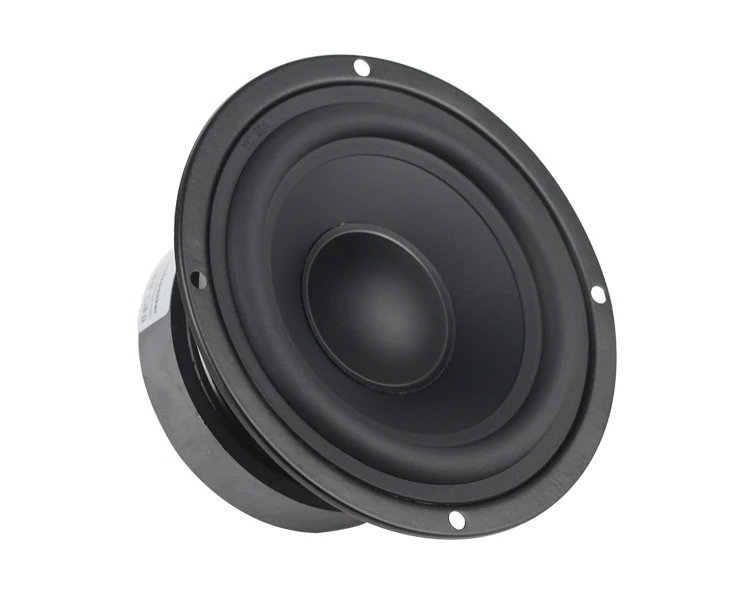

4 INCH 40W Pure Midrange Speaker Unit Alto Speaker Mediant HIFI Bookshelf MID Units Metal fully Sealed DIY 1PC

4 INCH 40W Pure Midrange Speaker Unit Alto Speaker Mediant HIFI Bookshelf MID Units Metal fully Sealed DIY 1PC

Regular price $29.13 USD
Regular price $0.00 USD Sale price $29.13 USD
Sale Sold out
Ships From

Recommend by X-Creation

X-Creation is a Youtube channel with over 1 million Subscribers, we post videos showing you how to create unique electronic products such as bluetooth speakers, speakers made from recycled items …more>>

WORLDWIDE DELIVERY

We ship to over 200 countries & regions.

SAFE PAYMENT

Pay with the world’s most popular and secure payment methods.

SHOP WITH CONFIDENCE

Our Buyer Protection covers your purchase from click to delivery.

SPECIFICATIONS

Support Apt-x: No

Speaker Type: Bookshelf

Sensitivity: 89DB

Rubber speaker side: yes

Remote Control: No

Rated Power: 40W

Power Source: DC,None,AC

Playback Function: DVD,CD,mp3,None

PMPO: NO

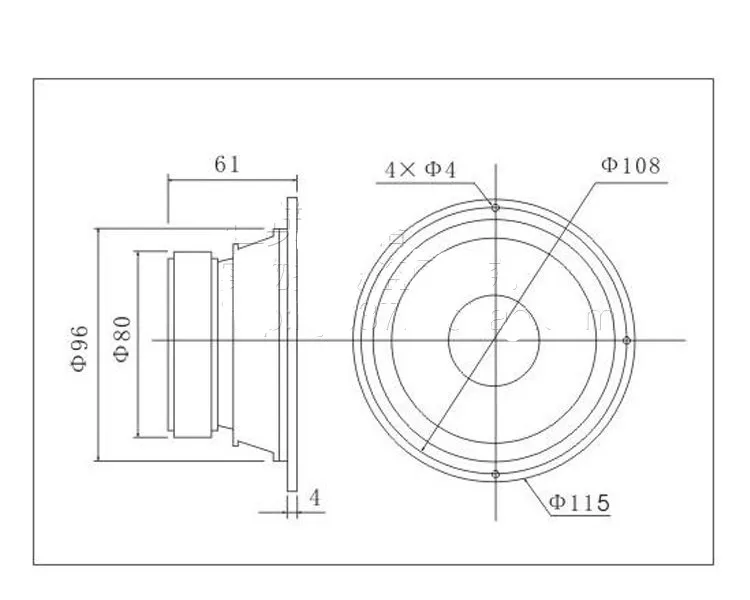

Outside diameter: 115MM

Output Power: 80W

Origin: Mainland China

Open Hole diameter: 96MM

Number of Loudspeaker Enclosure: 2

Net Weight: 650g/pcs

Model Number: 4 INCH 80W Pure Midrange Speaker Unit

Max Power: 80W

Matte coated paper tray: yes

Material: Metal

Input Power(W): 50-99 W

Fully enclosed cast iron horn tray: yes

Frequency response range: 600Hz

Display Screen: No

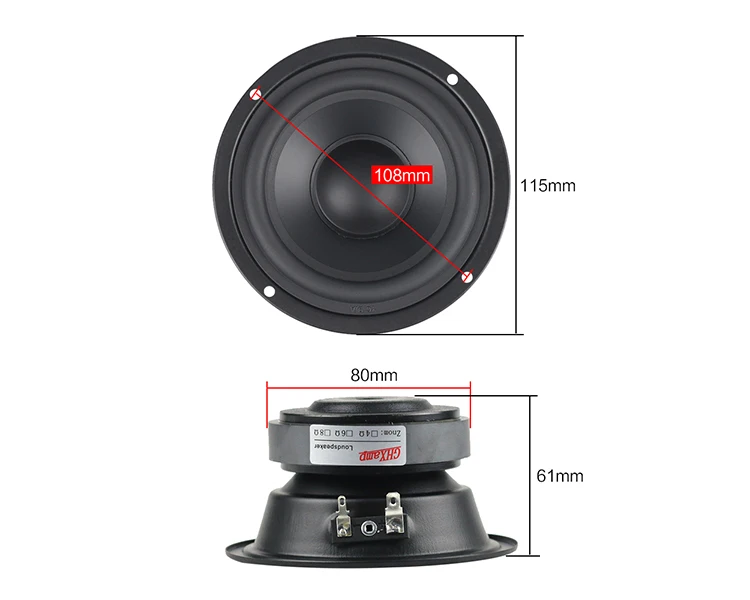

Diagonal screw hole: 108mm

Communication: Bluetooth,Audio Line

Channels: 2 (2.0)

Cabinet Material: Metal

Built-in Microphone: No

Brand Name: GHXAMP

Battery: No

Audio Crossover: Two-Way





Brand:GHXAMP,Price for 1pc.

Tip: In special cases, due to transportation, Some magnets at the bottom of the speaker may be slightly Scratched, but only a little, it will not affect the use at all, please pay attention.

1.Speaker with Matte coated paper tray, rubber speaker side, sound thick natural,

2.increase the magnet to ensure that the voice coil in the high power is still stable work.

3.Fully enclosed cast iron horn tray, can effectively isolate the subwoofer caused by the impact of airflow, so that the midrange speakers are not affected to play the true color.

Max Power: 80W
Rated Power:40W
DC resistance: about 5.2OHM
Impedance: 8OHM

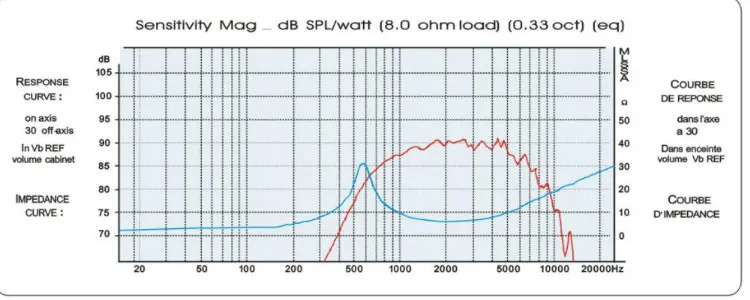

Resonant frequency: 600Hz
Frequent frequency: F0-8500hz
Sensitivity: 89DB
Q value: 0.51Qts
Voice coil diameter: 25mm
Magnet diameter: 80mm
Speaker diameter: 115MM
Opening Hole diameter: 96MM
Weight:0.65kg/pcs


Questions about DC impedance:

The impedance is dynamic and the DC resistance is static!
Impedance = resistance *1.2-1.4 times
The impedance rises with the high frequency, and it changes dynamically. If the DC has about 6 ohms, the dynamic impedance is about 8 ohms.

The conventional impedance is 5-6 ohms, and the DC resistance is 3-5 ohms.
The conventional impedance is 7-8 ohms, and the DC resistance is 5-6 ohms.


Package included:
1pc Pure Midrange Speaker





Questions about DC impedance:

The impedance is dynamic and the DC resistance is static!
Impedance = resistance *1.2-1.4 times
The impedance rises with the high frequency, and it changes dynamically. If the DC has about 6 ohms, the dynamic impedance is about 8 ohms.

The conventional impedance is 5-6 ohms, and the DC resistance is 3-5 ohms.
The conventional impedance is 7-8 ohms, and the DC resistance is 5-6 ohms.
